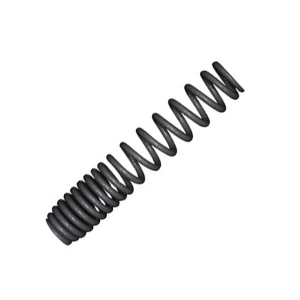

gray plastic compression spring

Description:

¢ 6 × 42 × 219.4 × 18 gray plastic spring used for shock absorber,also called coil spring,compression spring,spiral spring.wire dia:6mm,out dia:42mm,free heighte:219.4mm,total coils:18

Description
Send Inquiry

¢ 6 × 42 × 219.4 × 18 gray plastic, used for motorcycle rear shock absorber, drawn from 60Si2Mn oil quenching spring wire, wound into warp, then completed and set by multi-channel processes, and done surface treatment according to the requirements of customers. (With some technical requirements)
Technical Requirements:
1) Total number of coils: 18
2) Number of active coils: 16
3) Free height: 219.4mm
4) Port deburring
5) Both ends of the surface were wore off, circumference is not less than 3/4
6) Shot blasted: pills ¢ 0.8mm ~ ¢ 1.2mm, intensity 0.2 ~ 0.45A, coverage of 80%
7) Surface treatment: gray spray
