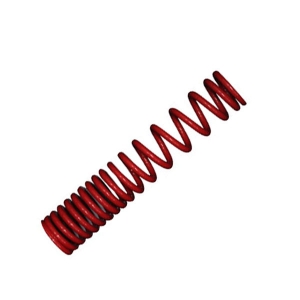

Red spary compression spring

Description:

¢ 6.2 × 45.7 × 231.2 × 17.7 Red spary spring used for shock absorber,also called coil spring,compression spring,spiral spring.wire dia:6.2mm,out dia:45.7mm,free heighte:231.2mm,total coils:17.7

Description
Send Inquiry

¢ 6.2 × 45.7 × 231.2 × 17.7 red, used for motorcycle rear shock absorbers, drawn from 60Si2Mn oil quenching spring wire, wound into warp, then completed and set by multi-channel processes, and done surface treatment according to the requirements of customers. (With some technical requirements)
Technical Requirements:
1) Total number of coils: 17.7
2) Number of active coils: 15.7
3) Free height: 231.2mm
4) Port deburring
5) Both ends of the surface were wore off, circumference is not less than 3/4
6) Shot blasted: pills ¢ 0.8mm ~ ¢ 1.2mm, intensity 0.2 ~ 0.45A, coverage of 80%
7) Surface treatment: red spray
