Home > Shock absorber spring > Golden spary compression spring

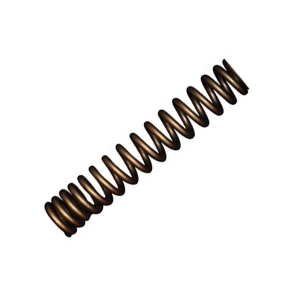

Golden spary compression spring

Description:

¢ 7.2 × 43 × 232.9 × 16.2 Golden spary spring used for shock absorber,also called coil spring,compression spring,spiral spring.wire dia:7.2mm,out dia:43mm,free heighte:232.9mm,total coils:16.2

Description
Send Inquiry

¢ 7.2 × 43 × 232.9 × 16.2 golden, used for motorcycle rear shock absorbers, drawn from 60Si2Mn oil quenching spring wire, wound into warp, then completed and set by multi-channel processes, and done surface treatment according to the requirements of customers. (With some technical requirements)
Technical Requirements:
1) Total number of coils: 16.2
2) Number of active coils: 14.2
3) Free height: 232.9mm
4) Port deburring
5) Both ends of the surface were wore off, circumference is not less than 3/4
6) Shot blasted: pills ¢ 0.8mm ~ ¢ 1.2mm, intensity 0.2 ~ 0.45A, coverage of 80%
7) Surface treatment: golden spray
