60Si2Mn oil black plastic compression spring

Description:

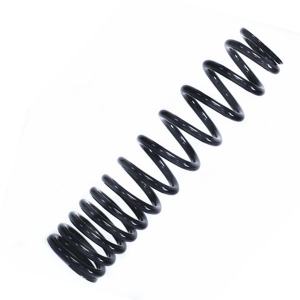

￠7.5×57.4×239.9×13.3 60Si2Mn oil black plastic spring used for motorcycle shock absorber ,also called compression spring,helical springs,coils spring.Wire dia:7.5mm,out dia:57.4mm,free height:239.9mm,total coils:13.3

Description
Send Inquiry

￠7.5×57.4×239.9×13.3 black plastic, used for motorcycle rear shock absorber, drawn from 60Si2Mn oil quenching spring wire, wound into warp, then completed and set by multi-channel processes, and done surface treatment according to the requirements of customers. (With some technical requirements)
Technical Requirements:
1) Total number of coils: 13.3
2) Number of active coils: 11.3
3) Free height: 239.9mm
4) Port deburring
5)Both ends of the surface were wore off, circumference is not less than 3/4
6) Shot blasted: pills ￠ 0.8mm ~ ￠ 1.2mm, intensity 0.2 ~ 0.45A, coverage of 80%
7) Surface treatment:black plastic
