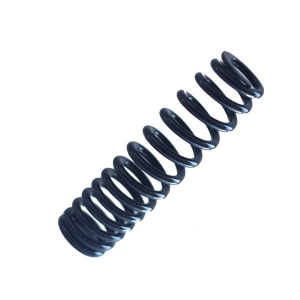

60Si2Mn oil black spary compression spring

Description:

￠7.5×53×200×13.5 60Si2Mn oil black spary spring used for motorcycle shock absorber ,also called compression spring,helical springs,coils spring.Wire dia:7.5mm,out dia:53mm,free height:200mm,total coils:13.5

Description
Send Inquiry

￠7.5×53×200×13.5 black spary, used for motorcycle rear shock absorber, drawn from 60Si2Mn oil quenching spring wire, wound into warp, then completed and set by multi-channel processes, and done surface treatment according to the requirements of customers. (With some technical requirements)

Technical Requirements:.
1) Total number of coils: 17.25
2) Number of active coils: 15.25
3) Free height: 200 mm
4) Port deburring
5)Both ends of the surface were wore off, circumference is not less than 3/4
6) Shot blasted: pills ￠ 0.8mm ~ ￠ 1.2mm, intensity 0.2 ~ 0.45A, coverage of 80%
7) Surface treatment: black spary
