60Si2Mn oil black spary compression spring

Description:

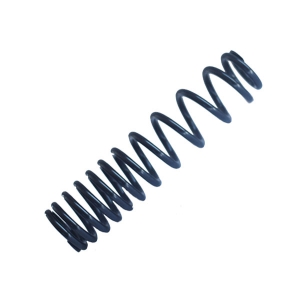

￠6.5×53×219.5×13 60Si2Mn oilblack spary spring used for motorcycle shock absorber ,also called compression spring,helical springs,coils spring.Wire dia:6.5mm,out dia:53mm,free height:219.5mm,total coils:13

Description
Send Inquiry

￠6.5×53×219.5×13 black spary, used for motorcycle rear shock absorber, drawn from 60Si2Mn oil quenching spring wire, wound into warp, then completed and set by multi-channel processes, and done surface treatment according to the requirements of customers. (With some technical requirements)

Technical Requirements:.
1) Total number of coils: 13
2) Number of active coils: 11
3) Free height: 219.5 mm
4) Port deburring
5)Both ends of the surface were wore off, circumference is not less than 3/4
6) Shot blasted: pills ￠ 0.8mm ~ ￠ 1.2mm, intensity 0.2 ~ 0.45A, coverage of 80%
7) Surface treatment: black spary
